The ST(K)-family of torque motors are designed for direct drive applications avoiding the use of gearboxes. Up to size 300 these motors are available as housed motors (ST) with bearing and sensor or as frameless motors (STK); size 400 and bigger are available as frameless motors only. The ST(K) offers within 6 frame sizes from 145 to 800mm and various stack length options in each size a continuous torque range from 14.6 to 2,708Nm (peak torque 43 to 9,258Nm). Optional cooling allows to increase the cont. torque to 29.9 bis 6,100Nm.
The use of Neodymium-Iron-Boron-magnets and the optimisation of electromagnetical and thermal properties lead to a torque-to-weight ratio of up to 15 Nm/kg for the STK motors. In size 145 and 190 there are special high precision versions with a cogging torque of less than 1% of the nominal value, so that these motors are suitable for applications requiring extreme smoothness and precision. As all direct drive motors the ST(K) motors offer very good dynamic response, precision and smoothness in case the connection to the load is very stiff. Another advantage is the possibility for a very compact machine design leading to very high reliability and low audible noise compared to conventional designs with gear motors.
The housed motors of the ST series are available with various flange and shaft options (including hollow shaft versions). Also various sensor options can be selcecte, including resolver, incremental and absolute encoders. Two windings for operation at three phase 400Vac are offered as standard; custom versions are available on request.
Contact us today to talk to an experienced MACCON engineer!
The STK family of kit torque motors also offers variants for harsh environments. There are three different possible ways to harden the motor against harsh environments.

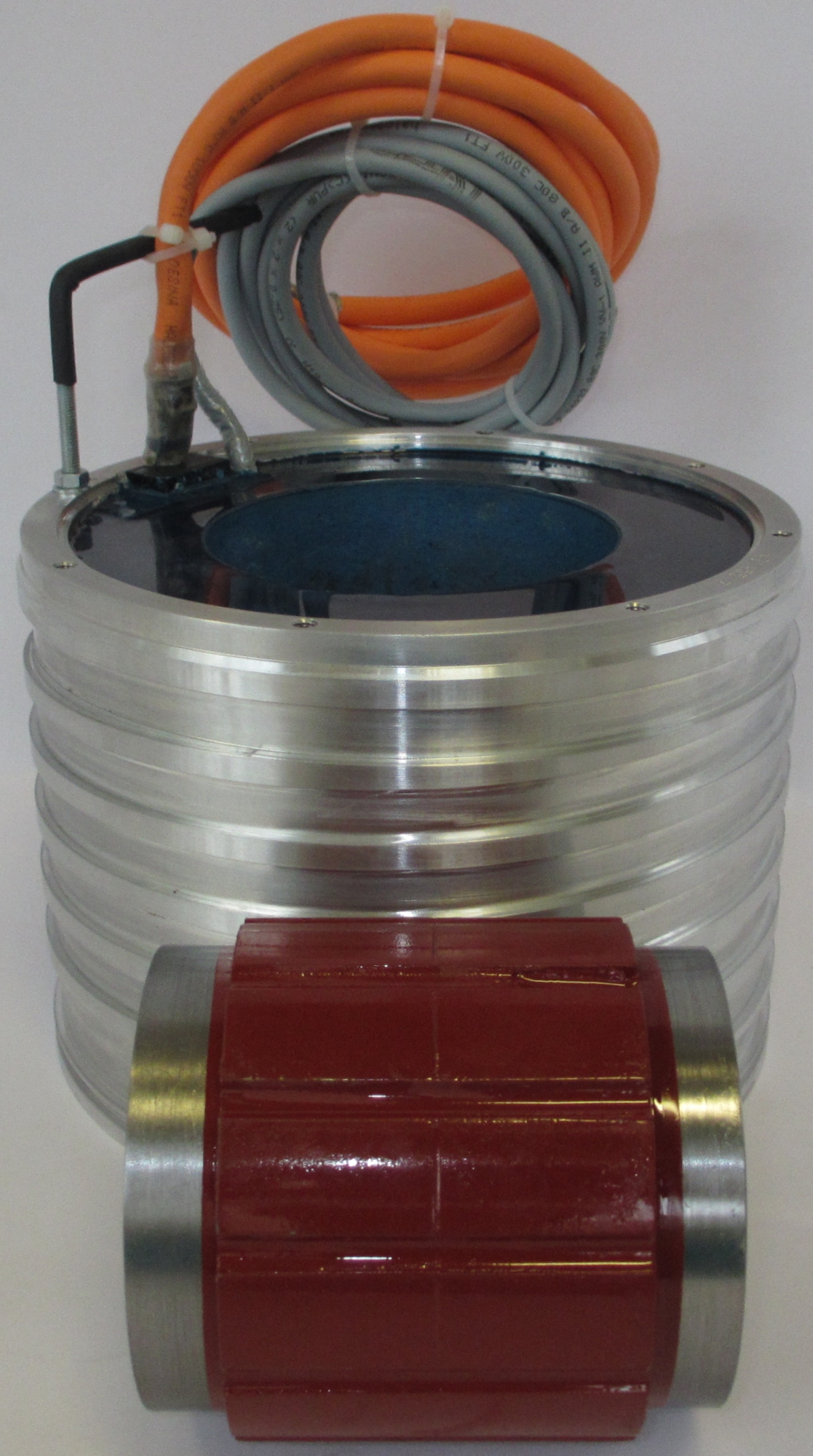

The standard torque motor uses a rotor with glue-bonded magnets, suitable for lowerspeeds in direct drive mode in a dry industrial environment. For environments with excessive moisture, aggressive chemicals and increased mechanical stress on the motor, a motor with suitable hardening is required. Also, if the customer wants to run the motor at speeds higher than the rated speed, a special protection is required against centrifugal forces.

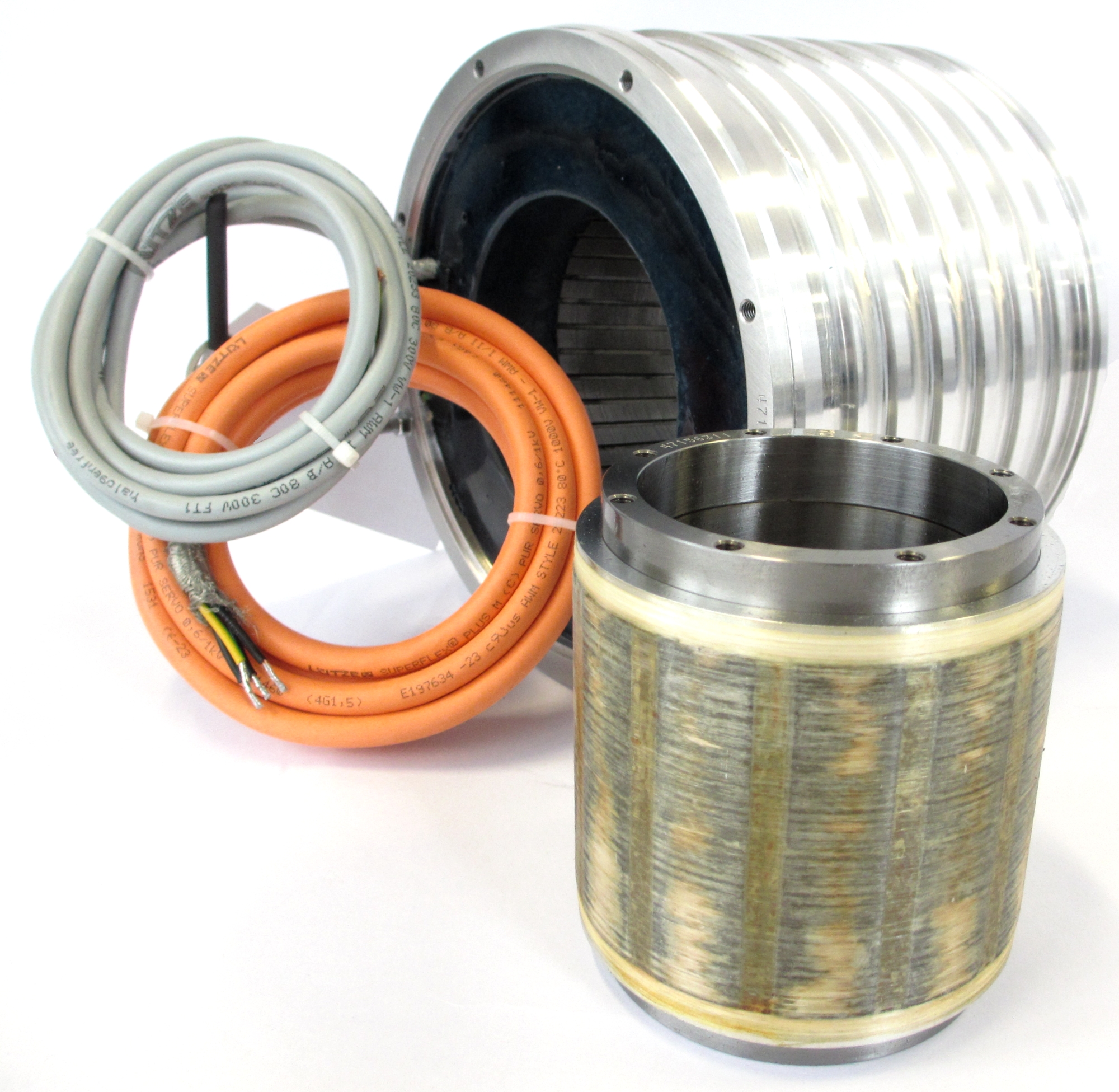

For operation at higher-than-rated speed, we recommend fiber glass encapsulation of the rotor magnets, in addition to the existing glue bonding. See image on the right-hand side. The encapsulation is under tension, thus protecting the rotor magnets against centrifugal forces. Also, the encapsulation protects the motor against vibrations and also against moisture. In addition, the encapsulated rotor is suitable for applications where the motor is immersed in dielectric oil under pressure ( i.e. pressure compensated bath) for example in subsea applications, to keep out salt water.

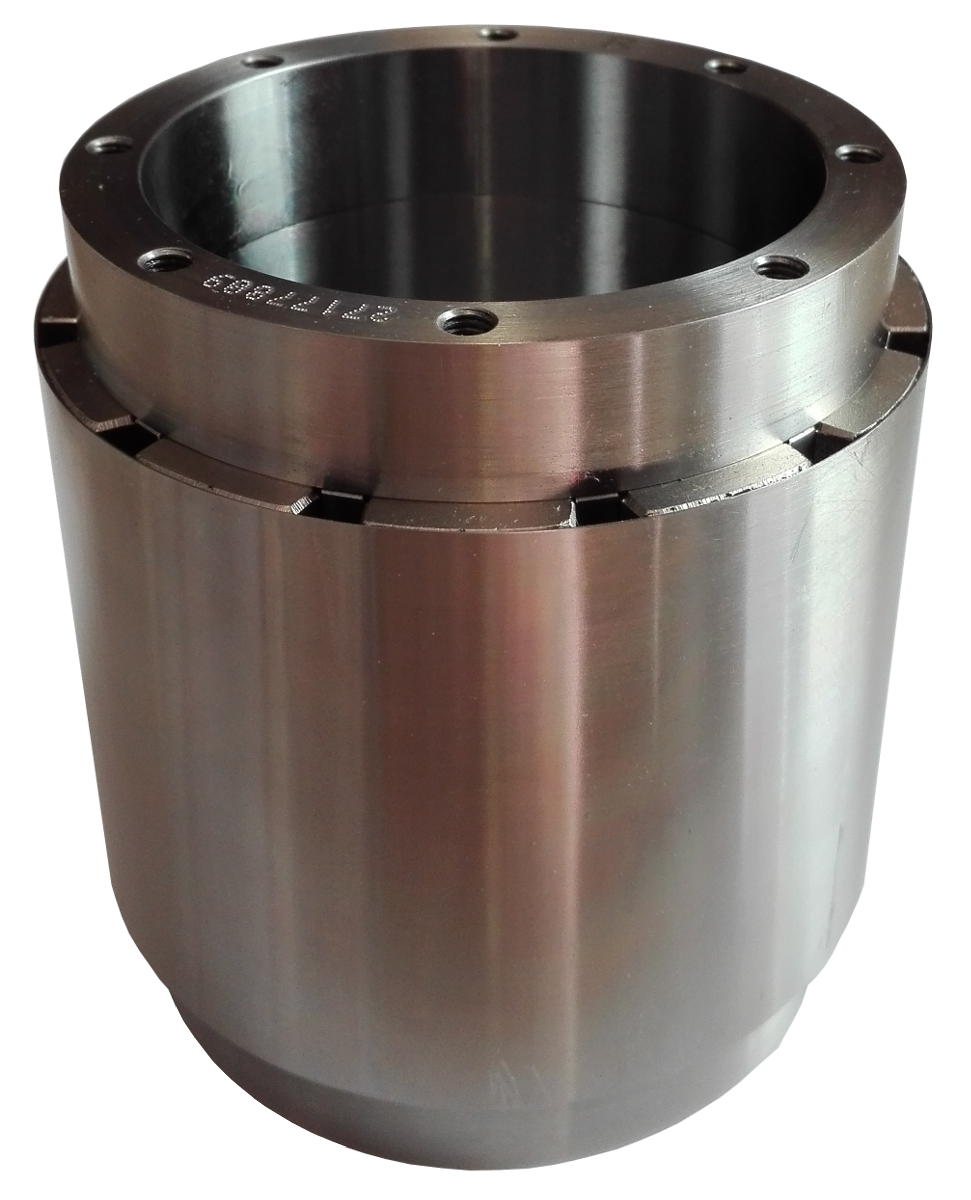

Another way to protect the motor is not to use glue and polymer material to bond and protect the magnets. Instead, the magnets can be mechanically integrated with the rotor and protected with a stainless steel sleeve (see image in the right-hand side). This type of protection is intended for applications inside a vacuum or when the motor is subjected to ionizing radiation. The protection is also suitable for motors integrated in machines which drive processes with the possibility of infiltration of solvents aggressive to bonding glues despite the protection of the stainless steel sleeve.
Please talk to us about the specifics of your application. We will be pleased to share our experiences with you and propose a hardened torque motor for your application. You can use our contact form to get in touch with us.
Contact us today to talk to an experienced MACCON engineer!
| Type | Peak Torque (Nm) | Rated Torque (Nm) | Pole Pairs (pp) | Flange Size (mm) | Axial Length (mm) | Max. ID (mm) | Min. Weight (kg) | Size OD/ID (mm) | Axial Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| (Housed) | (Frameless) | |||||||||
| 145ST(K)2M | 55 | 14,6 | 12 | 147 | 167 - 212 | 56 | 8,5 | 153/56 | 119 | 6,2 |
| 145ST(K)4M | 110 | 26,4 | 221 - 266 | 12,3 | 173 | 10,4 | ||||
| 145ST(K)6M | 165 | 37,3 | 275 - 320 | 16,4 | 227 | 14,5 | ||||
| 145ST(K)8M | 220 | 47,4 | 329 - 374 | 20,6 | 281 | 18,7 | ||||
| 190ST(K)2M | 119 | 36 | 12 | 190 | 204 - 242 | 75 | 18,2 | 193/72 | 140 | 13 |
| 190ST(K)4M | 238 | 63 | 276,5 - 314,5 | 27,2 | 212,5 | 22 | ||||
| 190ST(K)6M | 357 | 89 | 349 - 387 | 36,2 | 285 | 31 | ||||
| 190ST(K)8M | 476 | 111 | 421,50 - 459,5 | 45,1 | 357,5 | 40 | ||||
| 300ST(K)1M | 193 | 54 | 24 | 350 | 173,5 - 197,5 | 72 | 31,4 | 303/190 | 87,5 | 11,5 |
| 300ST(K)2M | 387 | 98 | 201 - 225 | 38 | 115 | 18 | ||||
| 300ST(K)3M | 580 | 135 | 228,5 - 252,5 | 44,5 | 142,5 | 24,5 | ||||
| 300ST(K)4M | 774 | 170 | 256 - 280 | 51 | 170 | 31 | ||||
| 300ST(K)5M | 968 | 203 | 283,5 - 307,5 | 57,5 | 197,5 | 37,5 | ||||
| 300ST(K)6M | 1.161 | 235 | 311 - 335 | 64,1 | 225 | 44 | ||||
| 300STK8M | 1.548 | 295 | Not available! | 280 | 57 | |||||
| 400STK2M | 880 | 225 | 24 | Not available! | 404/258 | 128 | 35 | |||
| 400STK4M | 1.760 | 400 | 183 | 58 | ||||||
| 400STK6M | 2.640 | 550 | 238 | 81 | ||||||
| 400STK8M | 3.520 | 700 | 293 | 104 | ||||||
| 500STK1M | 768 | 210 | 36 | Not available! | 502/350 | 93 | 27,4 | |||
| 500STK2M | 1.536 | 365 | 120,5 | 43 | ||||||
| 500STK3M | 2.304 | 520 | 148 | 58 | ||||||
| 500STK4M | 3.072 | 640 | 175,5 | 73 | ||||||
| 500STK6M | 4.608 | 878 | 230,5 | 103 | ||||||
| 800STK1M | 1.828 | 610 | 48 | Not available! | 795/630 | 112,5 | 55 | |||
| 800STK2M | 3.656 | 1.127 | 140 | 82 | ||||||
| 800STK3M | 5.484 | 1.620 | 167,5 | 109 | ||||||
| 800STK4M | 7.312 | 2.010 | 195 | 138 | ||||||
| 800STK6M | 10.968 | 2.708 | 250 | 193 | ||||||
