Analog to digital signal converter for resolver / encoder / SSI / Inductosyn

In many cases, the feedback generated by a motor is not the type of feedback format required for the servo drive. For such cases MACCON offers different types of signal converters to convert from analog formats (e.g. resolver) to digital formats (SSI, Quad A/B/Z).

It might also be the case, that we need to convert a digital absolute format (e.g. SSI) to a digital incremental format (Quad A/B/Z).

Please continue reading to learn more or contact us to discuss your technical requirements.

In this sector we offer several product lines of our partner company VEGA.

To convert the analog signal output of your resolvers into a digital signal, you need a converter. MACCON offers a selection of efficient components designed to output the digital square wave signals commonly found in encoders. In essence, our converters allow you to create digital resolvers that combine the robustness of a resolver with the digital simplicity of an encoder. This is ideal for industrial automation situations where you need to detect the rotational position of your devices but do not want to deal with the required installation of the sensors.

Improving Motion Control

Using the digital signal from an encoder makes it easier to work with the output data to understand the position and speed of your equipment.
Digital signals are also easier to send to other devices without the need for further processing or external analog-to-digital converters.

Application

• Ideal for closed loop positioning systems
• CNC and machine tool applications
• PLC positioning control
• Index/Rotation tables
• Positioning/telescope/telemetry systems
• Transfer Lines
• Factory Automation
• Robot applications
• Nuclear applications

Get the roughness of a resolver and the digital simplicity of an encoder.
Resolvers for incremental encoder output with index, complement and Hall effect with Hall effect simulation for 2,4,6,8,10, 12, 16 and 20 pole motors.

Application

• Ideal for motor commutation
• CNC and machine tool applications
• PLC positioning control
• Index/Rotation tables
• Positioning/telescope/telemetry systems
• Transfer Lines
• Factory Automation
• Robot applications
• Nuclear applications

Resolver/ Encoder Specification

• Works with Harowe/Danaher, Tamagawa, Kerfott, Singer, AMCI or most other synchro/resolvers.
• Works with R11, R25 and hollow shaft resolvers
• Bipolar and multipole (multi-speed) resolvers
• Transformation ratios from 0.25 to 2.0
• Excitation frequency 2.5, 5 and 10 kHz selectable via jumper
• Incremental encoder A-Quad-B with index and supplements
• TTL / Line Driver outputs for A-Quad-B and Index
• Jumper selectable quadrature number, 1000, 1024, 2000, 2048, 4000, 4096, 8000 and 8192
• Index pulse (Z-channel) occurs once per resolver cycle

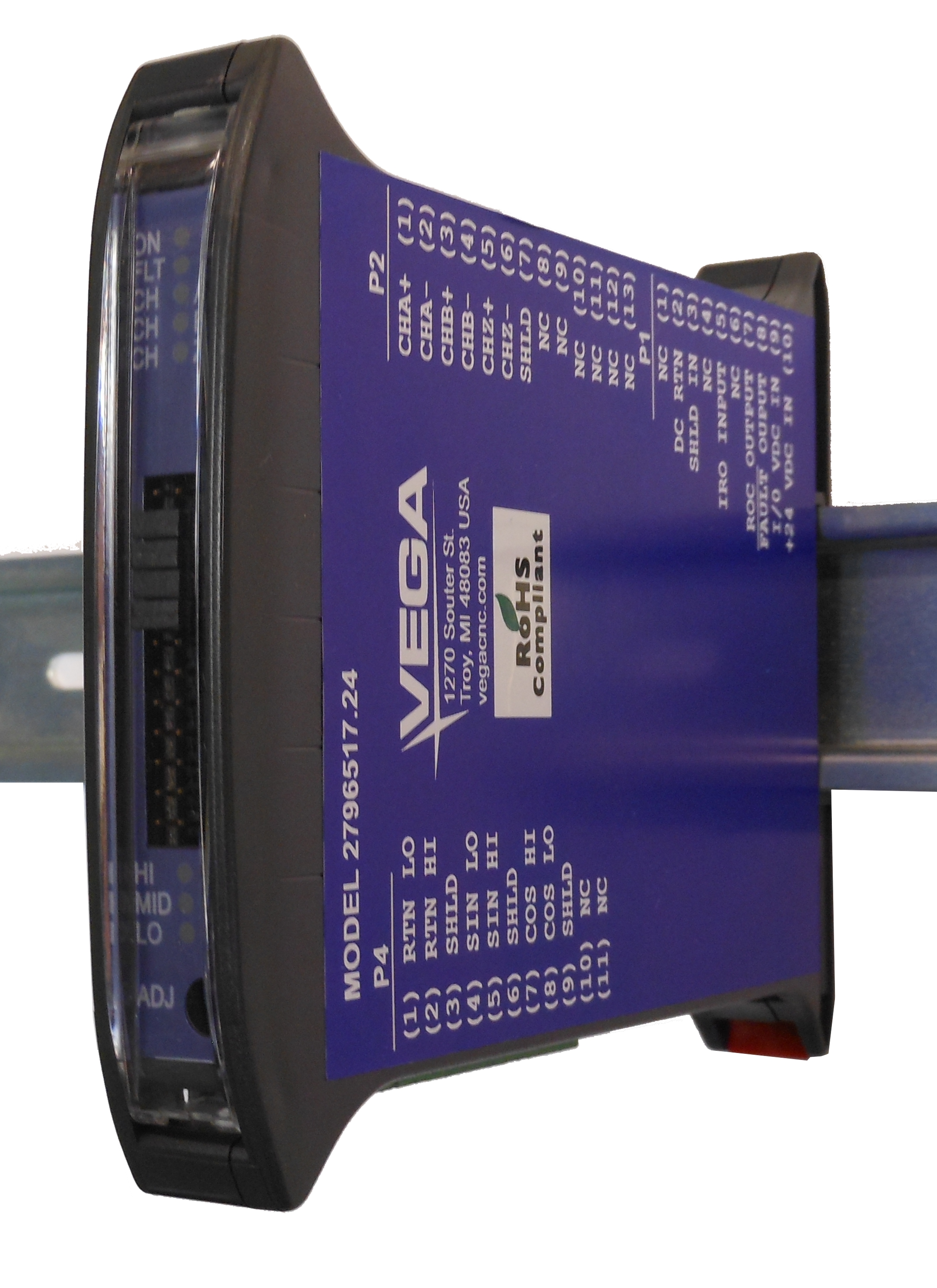

Get the ruggedness of a resolver with absolute multiturn position. Resolver to 25 bit absolute position with error status bit and SSI interface with position recovery after power failure and loss of resolver signal detection.

Applications

• Ideal for nuclear applications
• CNC and machine tool applications
• PLC positioning control
• Index/Rotation tables
• Positioning/telescope/telemetry systems
• Transfer Lines
• Factory Automation
• Robot applications

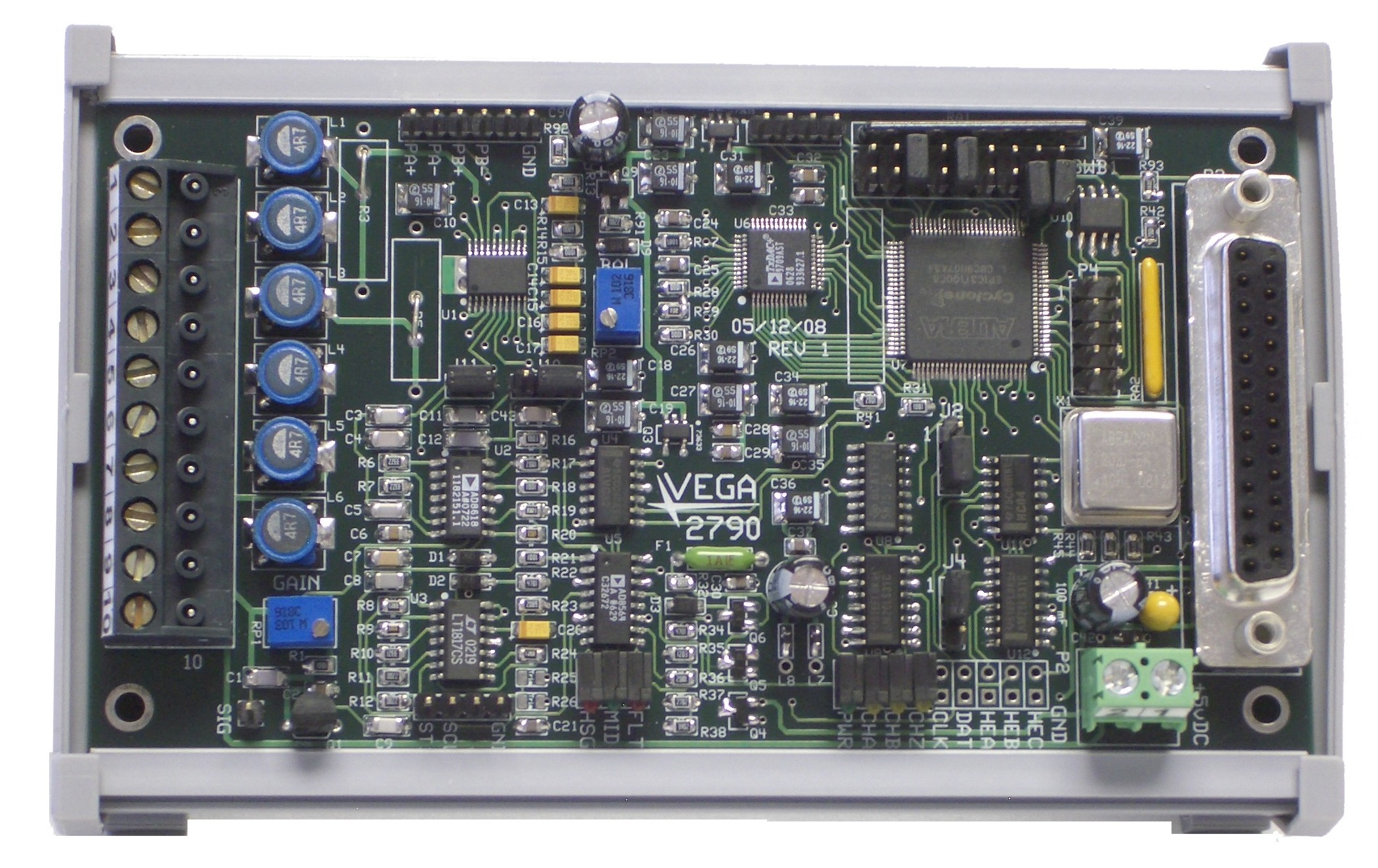

Get the precision of an Inductosyn scale and the digital simplicity of an encoder. Inductosyn to high-resolution incremental encoder output with index and supplemented with loss of Inductosyn signal detection for fail-safe operation

Applications

• Ideal for closed loop positioning systems
• Linear and rotating Inductosyn scales
• CNC and machine tool applications
• Index/Rotation tables
• Positioning/telescope/telemetry systems
• Transfer Lines

With VEGA Inductosyn to SSI you get the accuracy of an Inductosyn scale with absolute multiturn position. Inductosyn to 25 bit absolute position, error status bit and SSI interface with position recovery after power failure.

Applications

• Ideal for nuclear applications
• CNC and machine tool applications
• PLC positioning control
• Index/Rotation tables
• Positioning/telescope/telemetry systems
• Transfer Lines
• Factory Automation
• Robot applications

The SSI to Incremental Encoder converter offers selectable resolution and sampling frequency. Other available features are runout of absolute position on startup and simulated hall sensors for commutation.

SSI to Quadrature Interface

• Supports Up To 29 Bit SSI Interface
• Supports Long SSI Cable Lengths by Adjusting SSI Clock Frequency
• Sampling Frequency 20/10/5/2.5 KHz
• Removable Screw Terminals

Applications

• PLC Positioning Control
• Interface to any device that outputs SSI
• Compatible with Transducers and Absolute Encoders
• Ideal for Closed Loop Positioning Systems

Advanced Features

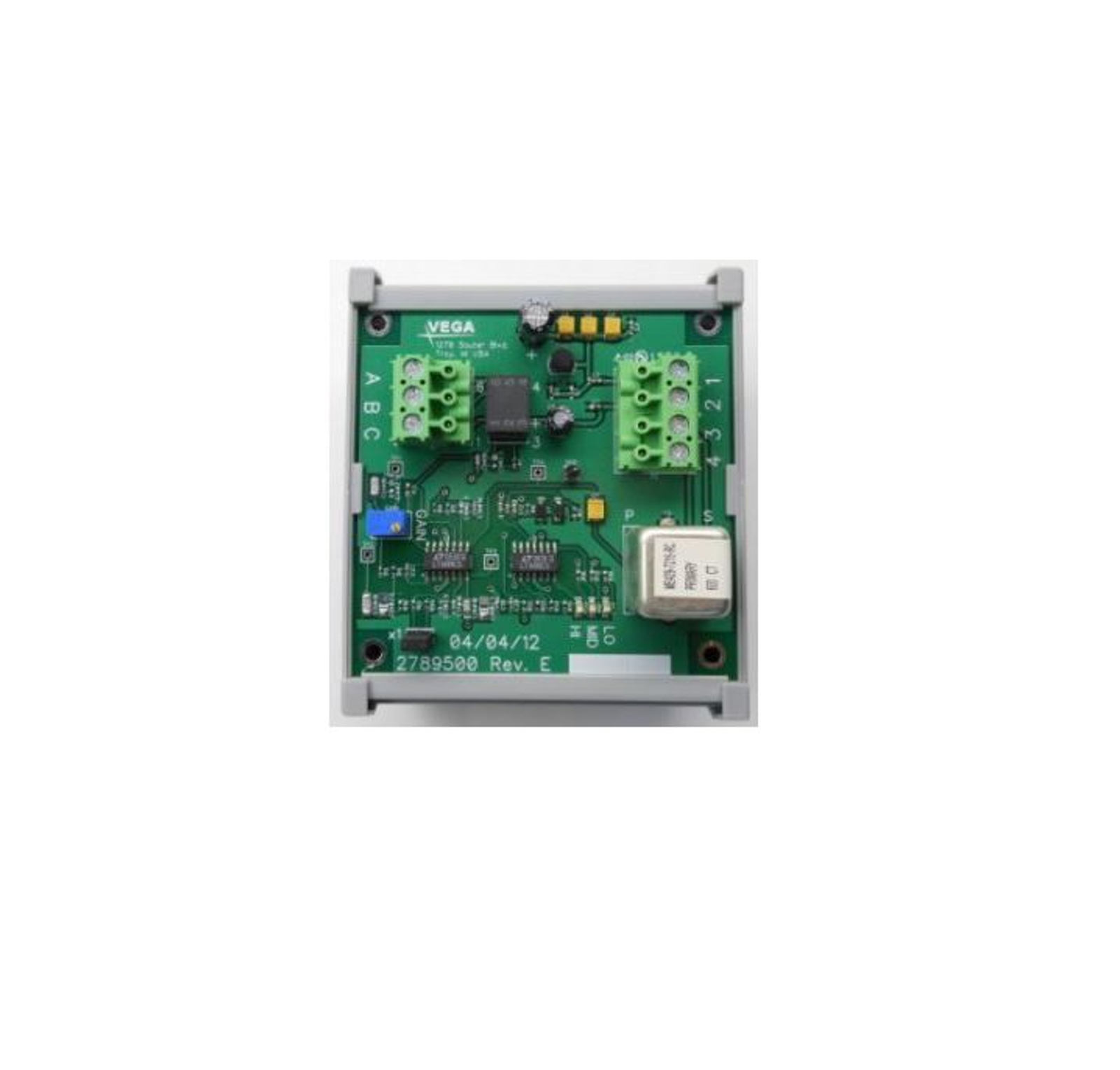

• Works with linear and rotating Inductosy™ scales
• Farrand, Heidenhain, Mitsubishi and G&L Inductosyn™ Scales
• Active filter for interference immunity
• Gain range from 60:1 to 2400:1
• Works with a single +5 Vdc supply
• Status LEDs for signal high, low and medium
• Easy to use
• Compact design
• Panel mounting or DIN rail mounting option
