High power at high speed (KBM Series)

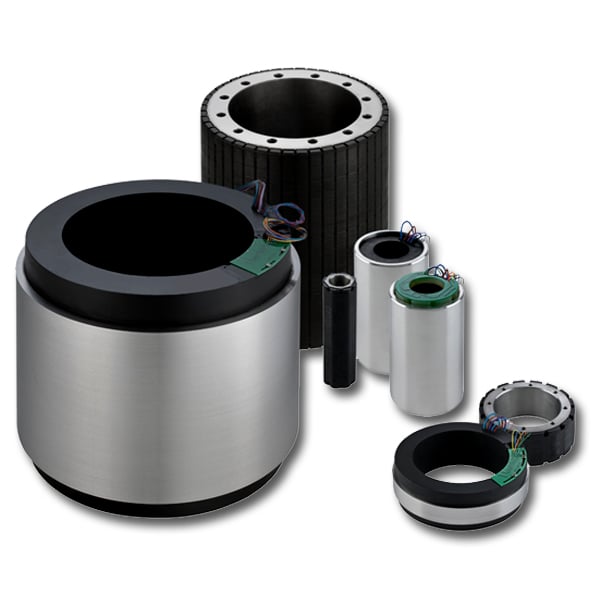

The KBM frameless motor series is our newest direct drive technology.  KBM kit models are engineered to provide the high-performance, long life and simple installation that today’s design engineers demand.  Optional latching digital hall effect sensors are pre-aligned and factory installed with added axial rotor length to achieve proper triggering.  Choice of insulation allows operation over a wide range of line input voltage up to 480Vac.

Please see General Information Sheet to review the variety of pre-engineered options and configurations that are currently available. Still need additional customized features? No problem. Contact us and help us understand exactly what you need and how we can further optimize any KBM or entirely custom motor solution for the unique requirements of your application. We are experts in providing optimized solutions such as special winding configurations, tailored mounting features, diameter and stack length dimensional adjustments, material variations, insulation types, magnetic circuit optimization and much, much more.



KBM Series Highlights

  • 14 motor sizes (60 to 782mm OD), each with 3 or 4 different stack length
  • Continuous holding torque from 0.5 to 3,500Nm
  • Fully encapsulated stator windings
  • 155°C internal winding temperature continuous capability
  • PTC thermistor (avalanche-type) overload protection
  • Rare-earth neodymium Iron Boron magnets
  • Fail-safe bands over rotor magnets
  • RoHS compliant
  • UL, CE agency facilitation
  • Customizable rotor hub dimensions

Downloads

Catalogue KBM torque motors
KBM frameless motor series
KBM frameless motor series

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

Open Contact-Form

Data table KBM series

Type and
Datasheet		Drawing
no Halls		Drawing
with Halls		Peak-
torque
Nm		Cont.
torque
Nm		Km
Nm/W^½		PolesDiameters
OD / ID
mm		Length
Stator
mm		Length total
without/with Halls
mm		Weight
without/with Halls
kg
KBM-10X01
KBM-10X02
KBM-10X03
KBM-10X04		Zeichnung
KBM-10
ohne Halls		Zeichnung
KBMS-10
mit Halls		1,170,4870,065660,0 / 16,046,046,0 / 53,310,379 / 0,425
2,330,8760,10765,065,0 / 72,190658 / 0,703
3,461,160,13684,084,0 / 91,060,943 / 0,990
5,461,450,168103,0103,0 / 109,941,22 / 1,26
KBM-14X01
KBM-14X02
KBM-14X03		Zeichnung
KBM-14
ohne Halls		Zeichnung
KBMS-14
mit Halls		3,281,220,144875,0 / 20,058,058,0 / 65,330,898 / 1,0
6,672,080,22589,089,0 / 96,221,59 / 1,68
10,12,820,279120,0120,0 / 127,12,98 / 3,08
KBM-17X01
KBM-17X02
KBM-17X03
KBM-17X04		Zeichnung
KBM-17
ohne Halls		Zeichnung
KBMS-17
mit Halls		5,952,08>0,2271085,0 / 30,057,857,8 / 65,101,05 /1,16
12,23,580,35986,886,8 / 93,981,87 / 1,97
18,54,890,461115,80115,8 / 122,862,65 / 2,76
23,76,20,544144,8144,8 / 151,743,62 / 3,72
KBM-25X01
KBM-25X02
KBM-25X03
KBM-25X04		Zeichnung
KBM-25
ohne Halls		Zeichnung
KBMS-25
mit Halls		14,44,90,45210110,0 / 50,062,7062,70 / 70,041,79 / 2,02
29,48,70,72993,7093,70 / 100,933,27 / 3,50
42,211,90,939124,70124,70 / 131,814,72 / 4,90
54,414,81,11155,70155,70 / 162,706,17 / 6,35
KBM-35X01
KBM-35X02
KBM-35X03
KBM-35X04		Zeichnung
KBM-35
ohne Halls		Zeichnung
KBMS-35
mit Halls		40,912,60,95410140,0 / 65,083,7483,74 / 90,924,68 / 5,17
58,817,31,24108,74108,74 / 115,796,76 / 7,21
76,121,81,51133,74133,74 / 140,658,80 / 9,34
92,325,61,71158,74158,74 / 165,5210,9 / 11,3
KBM-43X01
KBM-43X02
KBM-43X03		Zeichnung
KBM-43
ohne Halls		Zeichnung
KBMS-43
mit Halls		18,06,10,58016159,82 / 76,2511,4336,07 / 44,072,26 / 2,66
34,611,61,0022,8647,50 / 55,503,49 / 3,89
64,521,01,6545,7270,36 / 78,365,96 / 6,39
KBM-45X01
KBM-45X02
KBM-45X03		Zeichnung
KBM-45
ohne Halls		Zeichnung
KBMS-45
mit Halls		11930,72,1610190,0 / 85,0107,6107,6 / 114,2912,2 / 13,2
17043,72,80141,06141,06 / 148,1717,5 / 18,5
21854,63,36175,05175,05 / 182,0523,1 / 24,2
KBM-57X01
KBM-57X02
KBM-57X03		Zeichnung
KBM-57
ohne Halls		Zeichnung
KBMS-57
mit Halls		46,118,81,4924202,95 / 104,1420,3244,96 / 52,964,54 / 5,31
11533,52,5140,6465,28 / 73,287,89 / 8,62
21860,03,7181,79106,43 / 114,4314,5 / 15,4
KBM-60X01
KBM-60X02
KBM-60X03		Zeichnung
KBM-60
ohne Halls		Zeichnung
KBMS-60
mit Halls		12753,93,4438229,90 / 105,0248,11103,74 / 106,9113,2 / 15,3
2551085,7897,71153,34 / 156,5125,2 / 27,9
3931547,46147,32202,95 / 206,1237,2 / 39,8
KBM-79X01
KBM-79X02
KBM-79X03		Zeichnung
KBM-79
mit Halls		Zeichnung
KBMS-79
mit Halls		15243,52,8932259,66 / 152,4531,7558,43 / 66,299,2 / 10,7
31979,64,8163,5090,18 / 98,0416,9 / 18,4
6371437,29127,00153,68 / 161,5432,1 / 33,5
KBM-88X01
KBM-88X02
KBM-88X03		Zeichnung
KBM-88
ohne Halls		Zeichnung
KBMS-88
mit Halls		41420510,346331,50 / 154,9867,56132,58 / 135,6337,6 / 42,6
78938516,3136,65201,67 / 204,7272,6 / 77,6
1.20053820,6205,74270,76 / 273,81106 / 111
KBM-118X01
KBM-118X02
KBM-118X03
KBM-118X04		Zeichnung
KBM-118
ohne Halls		Zeichnung
KBMS-118
mit Halls		99432511,838361,20 / 260,29101,60145,42 / 149,8637,1 / 39,2
1.45144614,6152,40196,22 / 200,6653,5 / 56,2
1.93256017,1203,20247,02 / 251,4671,7 / 73,9
2.40067219,4254,00297,82 / 302,2688,5 / 90,7
KBM-163X01
KBM-163X02
KBM-163X03		Zeichnung
KBM-163
ohne Halls		Zeichnung
KBMS-163
mit Halls		1.96677625,656537,16/ 333,16
Flansch 605,0		142,54142,5490,7 / 96,2
2.9151.09032,5193,34193,34131 / 136
3.9321.37638.2244,14244,14161 / 166
KBM-260X01
KBM-260X02
KBM-260X03		Zeichnung
KBM-260
ohne Halls		Zeichnung
KBMS-260
mit Halls		6.4941.93247,158781,89/ 597,50
Flansch 850,0		172,62172,62170 / 177
9.7422.70659,8237,39237,39249 / 257
12.8123.44570,4302,16302,16329 / 336
